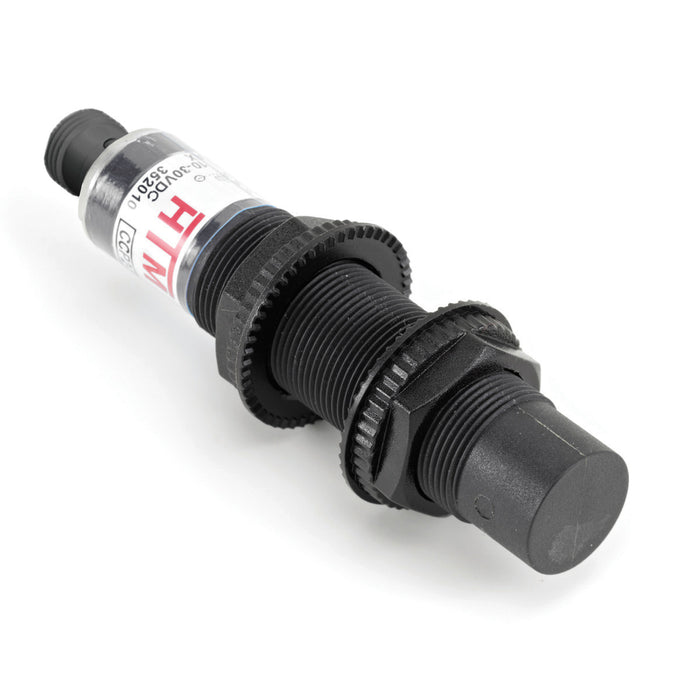

CCP2-1815P-ARU4 – HTM Sensors M18 Capacitive Proximity Sensor Unshielded 2-15 mm PNP NO M12 Connector
by HTM
CALL or click FOR QUOTE
The HTM Sensors CCP2-1815P-ARU4 is an M18 unshielded capacitive proximity sensor with a 2-15 mm sensing range, a PNP normally open (NO) output, a 10-30 V DC supply and an M12 A-coded connector. Capacitive sensors detect metal and non-metal targets alike, making them a good fit for level detection and for sensing plastic, glass, liquids, wood and other non-metallic materials.
Key Specifications
| Part number | CCP2-1815P-ARU4 |
|---|---|
| Type | Capacitive Sensor |
| Shape | Cylindrical |
| Size | M18 |
| Sensing range | 2-15 mm |
| Mounting style | Unshielded |
| Output type | PNP |
| Output function | Normally Open |
| Connection | 4 Pin Quick Disconnect |
| Connector | M12 A Coded Connector |
| Body length | 94 mm |
| Housing | PBT |
| Sensing face | PBT |
| Protection rating | IP67 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 10-30 V DC |
| Current consumption | <10mA |
| Leakage current | <0.01mA |
| Max current | 300 mA |
| Overload trip point | >50 mA |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Switching frequency | 100 Hz |
| Response time | 1.5 ms |
| EMC rating | RFI>3V/m,EFT>1KV,ESD>4KV |
| Shock/vibration rating | IEC 60947-5-2, Part 7.4.1/IEC 60947-5-2, Part 7.4.2 |
| Weld field immune | No |
| Weld spatter resistant | No |
| Matching cable | R-FS4TZ-V885 (Straight Connector) / R-FA4TZ-V885 (Angled Connector) |
| Matching bracket | HRAB-18 (Basic) / QT-18 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
